Greate capturedocs forums,I encountered a problem on checkmark group. The checkmarg group include several options,but the last one can be handwritten. So I want to add rule to Determine the last option output , If the handwritten item chosed,then export the handwritten as image.
like the picture shown below:
If I chose Yes ,then export the text "pxxxxmnt" as tif using script.
Thanks in advance
why can't be displayed after post ?
like the picture shown below:
If I chose Yes ,then export the text "pxxxxmnt" as tif using script.
Thanks in advance
why can't be displayed after post ?
コメント
5件のコメント
If I understood your question right, you would like to export picture block according to a checkmark value from group (if checked, then export).
If so, then in the rule script you will need to implement the following steps:
1. Access the checkmark group field and its children, get the last one and check its Value.
You can find sample scripts that demonstrate accessing checkmarks and checkmark groups in FlexiCapture 11 Help, section Appendix > Using scripts in ABBYY FlexiCapture > Scripts for customizing processing stages > Sample scripts for creating custom rules.
2. If the last checkmark value is TRUE, then get the document field with the handwritten text as picture and save it to file.
Here you have two opportunities:
- if it is already a block of Picture type, then you can take its value directly (should be IPicture) and write to file with SaveAs method, e.g.
me.Field("HadnwrittenField").Value.SaveAs(...);
- if it is a text block, then you can take is region (we assume that there is a simple rectangular region), the code should be like something like me.Field("HadnwrittenField").Regions[0].Picture.SaveAs(...).
Hope this helps.
You are right,that is what I want(if checked,then export the handwritten text as picture).

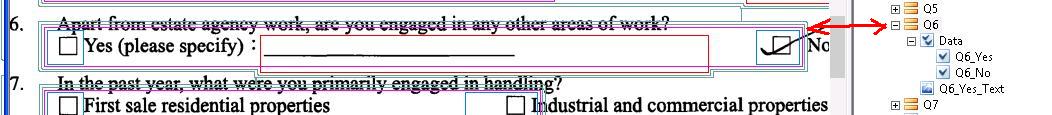

like the picture bellow:
Q6 is a general group,it has two members: Data and Q6_Yes_Text
Data is a checkmark group,it has two members:Q6_Yes and Q6_No
If I check Yes(the fieldName is Q6_Yes), then export Q6_Yes_Text(it is already a block of picture type)
but now I have two questions comparative doubts:
1.script error ,I don't known where I am wrong.
on fieldName of Data,I add two fields,which are "EN\Data\Q6\Data" (read only and alias name is Data) and "..\Q6_Yes_Text" (r/w and alias name is Q6_Yes_Text).the script is only one line:
me.Field("Q6_Yes_Text").Value.SaveAs("a1.tif") (use VBScript)
when run test and click check,it throwing "Rule 'EN\Data\Q6\Script'
2.Can I only type few word to enable or disable the handwritten text for exporting when the option checked?
maybe me.Field("Q6_Yes_Text").IsExportable = true ? but I know IsExportable is invalid property assignment here.

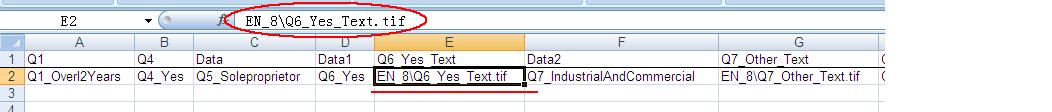

the purpose of doing this is I want to write the path(the handwritten picture will get the path/field name ) to the exported excel.

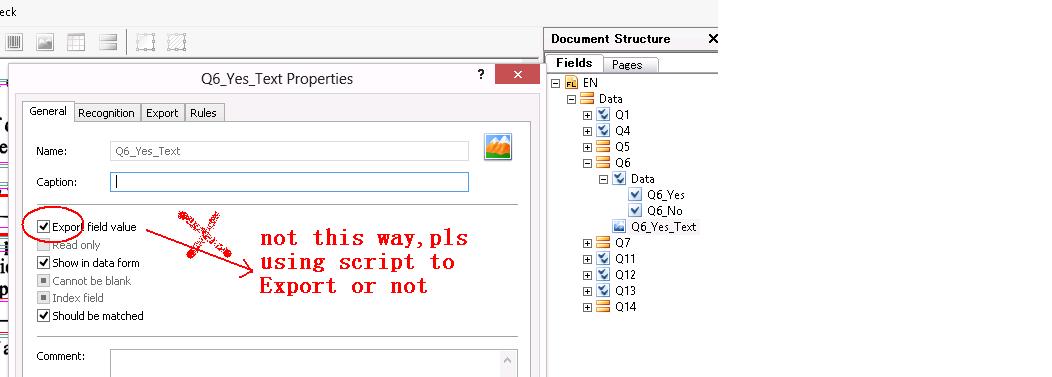

It is better to setting a switch to enable/disable the picture output,using script,not click the "Export field value" on the tab of General about field.
I'm so sorry to trouble you and I am ashamed of my english, I do not know whether you can understand me.
In order to save a field region as image try using SaveAs method the following way:
me.Field("FieldName").Regions.Item(0).Picture.SaveAs filename, null
Second argument is for image options, when it is null default options are used.
If you are using an export script, the FieldName should contain an absolute path to the field, in rule sripts it is the alias name.
As for the second question, consider creating an additional text field to store the image export path.
Please reply if you have any further questions.
Thank you for your prompt reply.the reply of the second question makes me excited.That is a good idea.Thank you very much.
But the first problem is still not resolved.
me.Field("Q6_Yes_Text").Regions.Item(0).Picture.SaveAs "abc.jpg",null
Error: Index out of range
me.Field("Q6_Yes_Text").Regions.Item.Picture.SaveAs "abc.jpg",null
Error: wrong number of arguments or invalid property assignment:'Me.Field(...).Regions.Item'
furthermore,the software version of flexicapture is Standard Edition 10.0.4.1486
Try creating a script similar to following example:
dim imageOptions
set imageOptions = FCTools.NewImageSavingOptions
imageOptions.Format = "tif"
imageOptions.ColorType = "BlackAndWhite"
imageOptions.Resolution = 600
me.Field("fieldname").Regions.Item(0).Picture.Save As "C:\Test.tif", imageOptions
This should probably solve the second issue, since in it coould be that previous versions always requred specific image options to be used.
First error is teling us that field was not found, and we are trying to access an object that doesn't exist
in order to avoid this error, try checking if the field contains needed items in the following manner:
if me.Field("fieldname").Regions.Count>=1 then
me.Field("fieldname").Regions.Item(0).Picture.Save As "C:\Test.tif", imageOptions
end if
