FlexiLayout: repeating groups to detect whitespace 回答済み

Avatar
Written by Permanently deleted user
  • 6

Hi I have upgraded from FC 11 to ABBYY FlexiCapture 12 recently.

However there is a Flexilayout project with repeating groups, which was ok on FC 11, but not on FC 12.

I am trying to detect repeating groups of white-space between signatures at the bottom of the page.

In the FC 12 flexilayout project, the repeating whitespace is detected on page 2, but not on page 3.

Besides using the converted project file from FC 11, I have also tried creating a new project, and the results are the same.

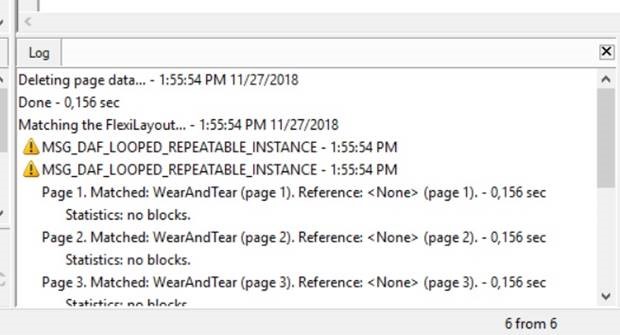

There is a warning / error in the project when I try to match to template, which is: MSG_DAF_LOOPED_REPEATABLE_INSTANCE

Is there any way to resolve this?

I can provide the project files with a sample PDF.

Thanks.





この記事は役に立ちましたか？

0人中0人がこの記事が役に立ったと言っています

コメント

6件のコメント

並べ替え基準 日付 投票
  • Avatar
    Permanently deleted user

    Hello,

    Could you please send us your FLS project?

    0
  • Avatar
    Permanently deleted user

     I was not able to send a PM to you - mailbox full. Can I send the download link using another method?

    Thanks.

    0
  • Avatar
    Permanently deleted user

    Hello

    https://share.abbyy.com/index.php/s/sWGNoZi3ioWb4tw

    0
  • Avatar
    Permanently deleted user

    hi I have uploaded the FLS project, in a zip file to the link you provided.

    Thanks for your help.

    0
  • Avatar
    Permanently deleted user

    Hello,

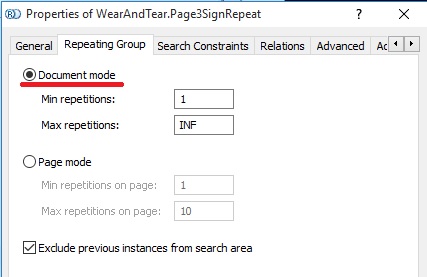

    You should switch the "page mode" setting to the "document mode" and the error disappear.



    1
  • Avatar
    Permanently deleted user

    thanks!
