How to inflate a single repeating group field within FlexiLayout?

Question

How to inflate a single repeating group field within FlexiLayout?

Answer

To inflate a single repeating group field within FlexiLayout, the Block should be assigned to the field via scripts. For example RepeatingGroup - description element should be inflated using the RG_Group - description block.

To do so, the script below should be applied to the description block settings:

OutputInstances = SearchElements.RepeatingGroup.AllInstances.description;
InflateResultRegion (2mm, 2mm);

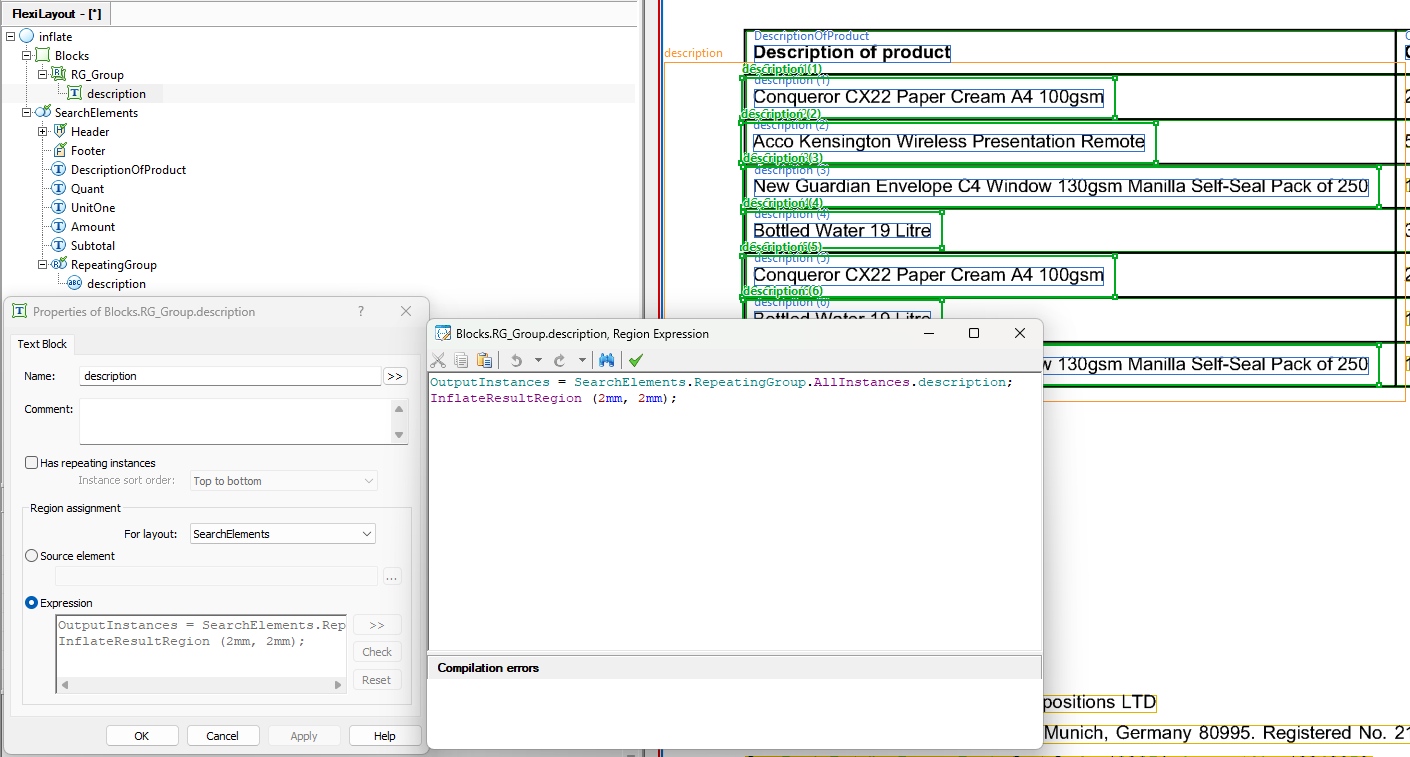

For more details, check the screenshot:



As a result, the blocks of the repeating group field were inflated.
