Assembly error: "Order pages as follows..."

Avatar

Alona Zbanatska

Symptoms

When recognizing the document, the Assembly error "Order pages as follows..." is shown.

Cause

One of the possible causes for the issue is that some of the properties are being missed or specified incorrectly for annex pages or multipage documents.

These settings can be adjusted in FlexiLayout Studio and Project Setup Station/Administrator's Station (Standalone version).

Resolution

If you are getting assembly errors during Verification or simply running some documents in the Working Batch, consider the following approach to remove the annex pages or adjust to the expected number:

  • Open Project Setup Station/Administrator's Station > Project > Document Definition Properties > Assembly tab > Enable annex pages > Annex Pages minimum/maximum number.mceclip0.png
  • Open FlexiLayout Studio > FlexiLayout tab > Properties > type in the expected number of pages in the allow multi-page documents section.mceclip0.png

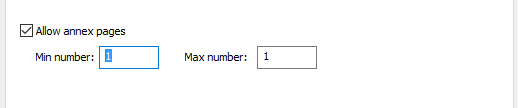

  • Furthermore, in Project Setup Station/Administrator's Station for Invoice projects, you can set up the number of annex pages. Document Definition Properties > General tab > Allow annex Pages minimum/maximum number or remove the checkmark if there is no need for annex pages.mceclip1.png

Have more questions? Submit a request

Comments

1 comment

Sort by Date Votes
  • Avatar

    Eric Kingett

    I occasionally get this error as well, but I'd just like to confirm it's OK to complete the task with the error present? Or I'd like to know the instructions to resolve it in the verification station if that is possible.
