Question

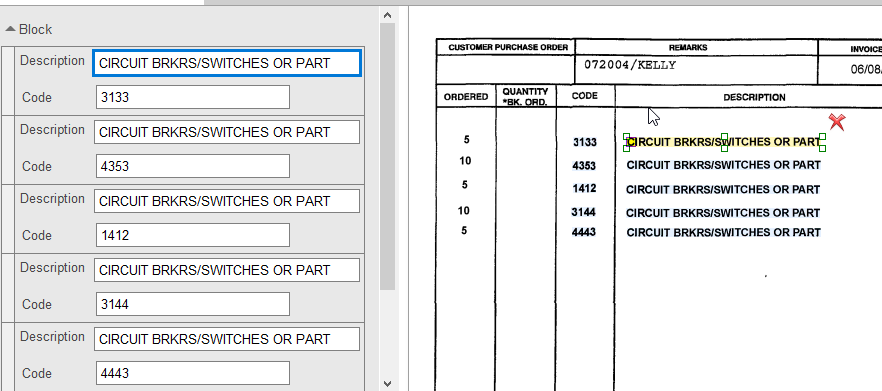

Repeating groups are often used in FlexiLayouts for the extraction of complex tables. However, the default representation of repeating groups on the Data Form does not look like a table, so the Verification Operator may find it inconvenient to work with the default representation.

Is it possible to visualize a repeating group as a table?

Answer

To visualize a repeating group as a table, you can use 2 possible approaches:

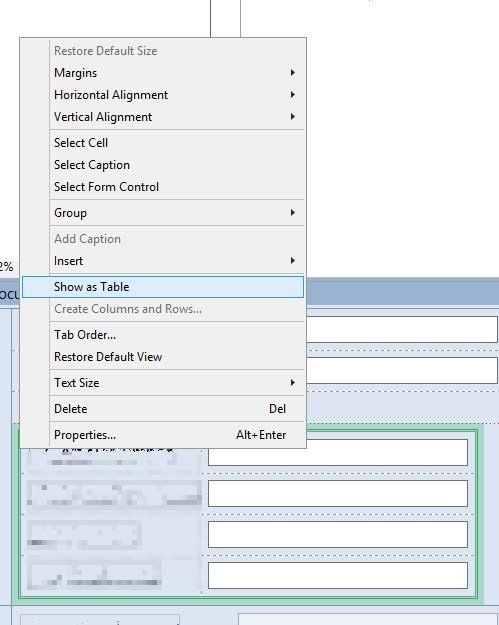

1. The repeating group may be shown "table-like" on Verification if you re-design the Data Form by selecting the repeating group instance container and applying the option Show as table

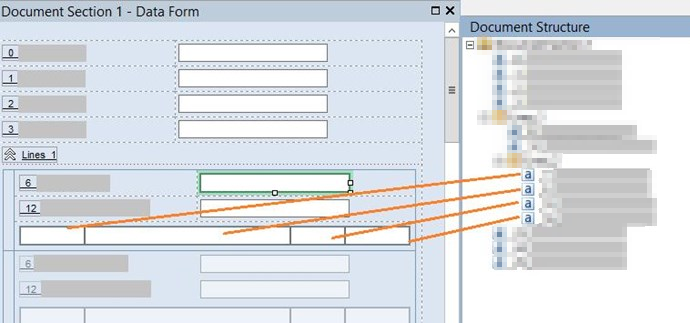

2. The other approach is to align all needed repeating group elements into one "row" manually on the Data Form:
