Documents are not classified when using FlexiLayout classifier

Symptoms

The *.cfl file was loaded into the classifier batch of the FlexiCapture project but the documents are still not classified with the correct document definition:


The first document should be classified as a European Invoice.

Cause

The classes weren't mapped to the created classes.

Resolution

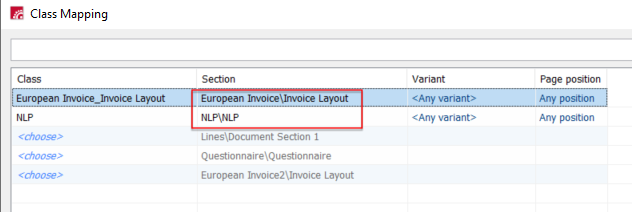

To solve it, enter the classifier batch and open the Class mapping:


Map created classes to the sections:


Don't forget to enable the classifier in the project properties > Recognition tab or Batch type properties > Recognition tab:


The recognition result will be next:
