Good morning
Do you know if repeating group can be visualized as table blocks (field names as column headers and values as rows) inside flexicapture? In particular i need this in the verification step where displaying data in a natural table will help to compare data (within rows) and discover possible error of extraction.
I need to use repeating groups because the layout of my documents is too complex to be managed by tables.
P.S. I'm using flaxilayout to build the layouts. The version is Flaxicapture for invoices 12.
Comments
10 comments
Hello,
I'm looking for the same thing.
Hello,

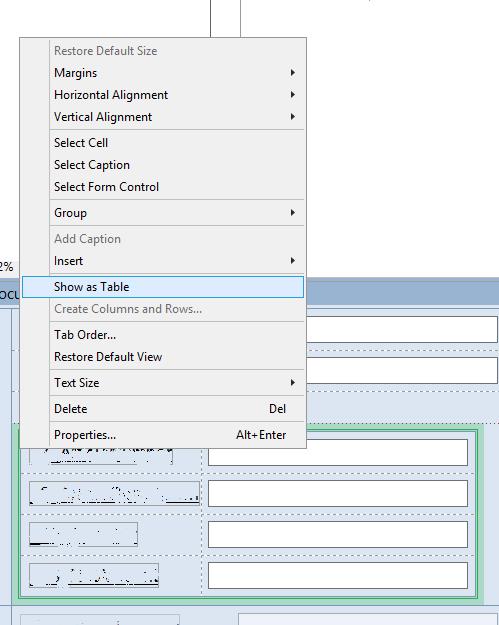

As shown on the attached images, the repeating group may be shown "table-like" on Verification if you re-design the DataForm either by selecting the repeating group instance container and applying option "Show as table" or by aligning all needed repeating group element into one "row" manually.
Thank Ekaterina,
I followed your instructions and i set "Show as table" to the repeating group instance in the Document Definition Editor data form.
That means : I published the updated Document Definition, updated the project, reprocessed the document inside the Project Setup Station and I got the repeating group showed as table, as expected.
If do the same as batch (by import profile) and I open it inside a Verification Station, I get the repeating group as standard view, not as table.
How can I get the Verification Station uses the updated Document Definition with table view ? The only way (sure not the best) I found to get this is delete the project and upload a new one.
Note: I'm using Flaxicapture distributed for invoices 12.
Hello Ekaterina,
I found the solution on my own. I was using the local project instead of the remote one.
Thank for all.
Hello!
Could you please through a clue, where to find this context menu item?
Because I cannot currently find such option in data form in document definition editor.
Thanks in advance!
I have found where Show as table option is located, just didn't have a chance to update thread.
Here is another question, I just wondered does it work for web verification station, since our users are going to access it instead of desktop one.
Could someone out there clarify on that point?
Hello,
Yes, the "Show as table" function is supported on the Verification station.
Hi,
I cant seem to find this "Show as Table" Option. Actually When I right click on the repeating group I get completely different options (Attaching a Screenshot). Kindly help in finding how one can display a Repeating Group as Table.
Hi,
I have the same problem, I can't see the option of "Show as a table"
Below is a screenshot
Ahmed Sami Ali,
If you still experience this issue, I'd encourage you to create a request for the Customer Support Team.
Please refer to this article for instructions.
